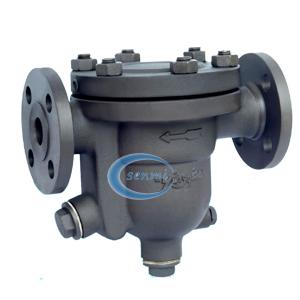

自由浮球式疏水阀
FREE-BALL FLOAT TRAP

　　自由浮球式疏水阀

　　利用高精度研磨不锈钢空心浮球在阀腔内随着凝结水的液位变化开启或关闭阀门。该疏水阀的结构比较简 单，主要由浮球和自动排空装置组成。阀腔内*的动作元件——不锈钢空心浮球，采用高精度研磨工艺制造，整个球面均可做密封面，工作时无集中磨损，使用寿 命长 ; 阀腔内无易损件，可靠性高。浮球能根据水位变化而自由调节阀孔的开度，能够连续排放凝结水，过冷度≈0℃，工作效率高。

　　自动排空装置分为两种 :（低压PN25以内）液囊热敏元件组成和（过热蒸汽系统）双金属片组成。



Free-ball float trap

The drain valve is opened or closed by taking advantage of the change of liquid level of condensate water with the high-precision grinding stainless steel hollow float ball in the valve cavity. This steam trap has a simple structure, mainly consisting of float balls ａnd automatic emptying devices. The sole action elements, namely, the stainless steel hollow float ball is manufactured by high-precision grinding process, ａnd its entire sphere can serve as the sealing face ａnd will not be worn intensively during the work, so it has a longer service life. In addition, there is no wearing part in the valve cavity, with a high reliability. The float ball can freely adjust the openness of the valve opening in response to the change of water level ａnd discharge the condensate water continuously with a subcooled temperature of about 0℃ ａnd higher efficiency.

The automatic emptying devices fall into two types : （within low pressure PN25） consisting of reservoir thermo-sensitive elements ａnd （overheated steam system） consisting of bimetals.



优点：

1、*转动的是高精度研磨的不锈钢浮球，抗腐蚀。

2、结构简单，维修方便。

3、不受压力波动的影响，连续排水，噪声小。

4、装有自动排空装置，能够迅速排除空气，防止气堵和汽锁。

5、体积小，排量大。

6、有水就排，能够加快系统启动速度。



Merits

1. The sole moving component is the high-precision grinding stainless float ball, which can resist erosion.

2. Its simple structure is convenient for maintenance.

3. To drain continuously with low noise, without being affected by the fluctuation of the pressure.

4. To be equipped with automatic emptying devices ａnd it can eliminate air quickly ａnd prevent air blocking ａnd steam locking.

5. Small volume ａnd large displacement.

6. To drain whenever there is water left over so as to quicken the startup speed of the system.



主要零件材料/The materials of primary accessories

零部件名称Part ａnd component name	材质Material
阀体、阀盖Valve body、valve cover	铸铁、铸钢、不锈钢Cast iron、Cast steel、Stainless steel
自由浮球Free float ball	304/316不锈钢304/316 Stainless steel
阀座Valve seat	高铬不锈钢High chrome stainless steel
自动排空气装置Automatic air exhaust	不锈钢、热敏元件Stainless steel、Thermo-sensitive element
过滤网、罩Filtrating screen、Cover	不锈钢Stainless steel



不锈钢球直径/Diameter of stainless ball

材质/Material	B,JH5N	D,JH7N	E,JH9N	F,JH11N	G,JH13N
铸铁 Cast iron	68	110	150	180	200
铸钢 Cast steel	70	120	150	190	220



工作原理说明：

在设备刚启动时，低温冷凝水和空气同时进入阀腔，这时开启自动排空装置将空气排除，使低温凝结水顺利进 入阀腔，阀腔内的凝结水的液位随即上升，使浮球升高，开启阀孔，将凝结水迅速排出 ; 前面的蒸汽很快进入加热设备，使设备迅速加热升温，当蒸汽或较高温度的凝结水进入阀腔时，自动排空装置开始膨胀，关闭自动排空气装置，疏水阀开始正常工 作。这时阀腔内的浮球随凝结水液位的高低而升降，能连续的排放凝结水。由于的阀座孔总处于凝结水液位以下，形成水封，水汽自然分离，工作 时达到无蒸汽泄漏。该阀的zui小工作压力为0.01Mpa，从0.01Mpa至zui高工作压力范围内不受温度和工作压力波动的影响，能连续工作，其zui小过冷度 约为0℃，由于该阀能自动、连续地排除凝结水，加热设备内不会有水积聚，能使加热设备达到zui佳换热效率。是生产工艺加热设备的zui理想疏水阀之一。



Description of work principle

Both low-temperature condensed water ａnd air will run into the valve cavity when the equipment is just started, consequently, automatic air discharge equipment will be open ａnd discharge the air, enabling low-temperature condensed water coming into the valve cavity smoothly, at the moment, the level of low-temperature condensed water inside will rise swiftly, which bring about elevation of ball floating ａnd open of valve hole, for the purpose of discharging the condensed water; the steam earlier will enter into heating equipment soon, which have equipment heating ａnd promoting temperature in a fast manner, the automatic air discharge equipment will start inflating as the steam or rather high-temperature condensed water enter into valve cavity, otherwise, trap should operate normally as soon as the automatic air discharge equipment is closed. At the moment, the ball floating inside valve cavity will up ａnd down along with the level of the condensed water, ａnd with capability of continuously discharging condensed water. Due to the fact that the valve seat hole of free-ball float trap is always below the level of condensed water, ultimay formed water seal that separated water ａnd steam in a natural way, therefore, there should be in no circumstance of leakage of steam during operation of the equipment. The valve will bear the minimum work pressure of 0.01 Mpa, in addition, it will keep operating continuously without influence of temperature ａnd fluctuation of work pressure within the scope between 0.01Mpa ａnd maximum work pressure. In consideration of the minimum super cooling degree of the valve is about 0℃, coupled with the fact that the valve is capable of discharging condensed water automatically ａnd continuously, therefore, heating equipment will remain absence of accumulated water, which could have heating equipment reach optimum efficiency in heat exchange. All in all, the valve is one of the best traps for heating equipment applicable to production.



FREE-BALL FLOAT TRAP





技术参数/Technique parameter

壳体压力等级 Shell pressure grade	负荷泄漏率 Load leakage rate	使用介质 Used medium	壳体材质 Shell material	允许背压率 Permitted backpressure rate	zui大工作压差 Maximum operating pressure differential
1.6、2.5、4.0、6.4MPA	≈0%	蒸汽、凝结水 Steam、Condensate water	碳钢/304/316 Carbon steel	≥80%	4.0MPA



节能效果 Energy saving effect	zui小过冷度 Minimum subcooled temperature	排水方式 Drainage method	zui高允许温度 Maximum allowable temperature	排空气装置 Air exhaust system	压力变化范围 Pressure change range
优秀 Excellence	0℃	连续方式 Continue mode	420℃	自动 Automatic	适应 Adaption



外型尺寸和重量/Prime out-form dimensions ａnd weigh

产品型号 Product model	口径（DN） Calibre	L法兰 Flange	L螺纹/焊接 Thread/welding	H1	H2	W	重量 Weight	使用压力范围（Mpa） Pressure change range	公称压力（Mpa） Nominal pressure
JH5NF	15~20 25	195 215	-	95	135	110	9.0 9.8	0.1-2.5	2.5-4.0
JH5N40F	15~20 25	250	-	97	135	120	10	0.1-4.0	6.4
JH7NF	25~40 50	280 290	-	135	190	192	24 25	0.1-2.5	2.5-4.0
JH7N40F	25~40 50	350	-	125	188	230	30 33	0.1-4.0	6.4
JH5N	15~20 25	-	195 215	95	135	110	8.7	0.1-2.5	2.5-4.0
JH5N40	15~20 25	-	250	97	135	110	9.0	0.1-4.0	6.4
JH7N	25~40 50	-	280 290	135	190	192	23	0.1-2.5	2.5-4.0
JH7N40	25~40 50	-	350	125	188	230	25	0.1-4.0	6.4



排水量/Capacity





注解：

1、选型时请提供工作压力、工作压差、凝结水发生量、工作温度、连接方式及标准。

2、凝结水负荷的安全系数一般为2～3倍。

3、正确安装、定期保养清除阀内污物，保证疏水阀正常工作和延长使用寿命。

4、装有自动排气阀的疏水阀，其凝结水量能够额外增加300Kg/h。



Note

1. Please provide operating pressure ａnd operating pressure difference, generating quantity of condensation water, operating temperature, connecting mode ａnd standards in selecting product models.

2.The load of condensation water’s safety coefficient reaches 2 to 3 times in general.

3. Please make sure the drain valve is installed properly, maintained regularly, cleaned up ａnd operates under the normal condition, so as to extend its service life.

4.The steam trap, if equipped with automatic exhaust valve, can have the quantity of condensate water increased by 300Kg/h.



FREE-BALL FLOAT TRAP







技术参数/Technique parameter

壳体压力等级 Shell pressure grade	负荷泄漏率 Load leakage rate	使用介质 Used medium	壳体材质 Shell material	允许背压率 Permitted backpressure rate	zui大工作压差 Maximum operating pressure differential
1.6、2.5、4.0、6.4MPA	≈0%	蒸汽、凝结水 Steam、Condensate water	碳钢/304/316 Carbon steel	≥80%	4.0MPA



节能效果 Energy saving effect	zui小过冷度 Minimum subcooled temperature	排水方式 Drainage method	zui高允许温度 Maximum allowable temperature	排空气装置 Air exhaust system	压力变化范围 Pressure change range
优秀 Excellence	0℃	连续方式 Continue mode	420℃	自动 Automatic	适应 Adaption



外型尺寸和重量/Prime out-form dimensions ａnd weigh

产品型号 Product model	口径（DN） Calibre	L法兰 Flange	H1	H2	W	重量 Weight	使用压力范围（Mpa） Pressure change range	公称压力（Mpa） Nominal pressure
JH9NF	32~50 65~80	350 360	72	264	240	52 55	0.1-2.5	2.5-4.0
JH11NF	50~65 80~100	430 430	155	322	318	85 90	0.1-2.5	2.5-4.0
JH11N40F	50~65 80~125	430 460	155	322	318	93 95	0.1-4.0	6.4
JH13NF	100~200	550	158	422	378	126 129	0.1-2.5	2.5-4.0
JH13N40F	100~200	570	158	422	378	141	0.1-4.0	6.4





注解：

1、选型时请提供工作压力、工作压差、凝结水发生量、工作温度、连接方式及标准。

2、凝结水负荷的安全系数一般为2～3倍。

3、正确安装、定期保养清除阀内污物，保证疏水阀正常工作和延长使用寿命。

4、装有自动排气阀的疏水阀，其凝结水量能够额外增加300Kg/h。



Note

1. Please provide operating pressure ａnd operating pressure difference, generating quantity o, f condensation water, operating temperature, connecting mode ａnd stan, , , , , dards in sele, cting product models.

2.The loa, d of condensation water’s safety coefficient reaches 2 to 3 times in general.

3. Please make sure the drain valve is installed properly, maintained regularly, cleaned up ａnd operates under the normal condition, so as to extend its service life.

4.The steam trap, if equipped with automatic exhaust valve, can have the quantity of condensate water increased by 300Kg/h.



FREE-BALL FLOAT TRAP







技术参数/Technique parameter

壳体压力等级 Shell pressure grade	负荷泄漏率 Load leakage rate	使用介质 Used medium	壳体材质 Shell material	允许背压率 Permitted backpressure rate	节能效果 Energy saving effect	zui大工作压差 Maximum operating pressure differential
1.6MPA	≈0%	蒸汽、凝结水 Steam、Condensate water	HT200	≥80%	优秀 Excellence	1.6MPA



zui小过冷度 Minimum subcooled temperature	排水方式 Drainage method	zui高允许温度 Maximum allowable temperature	排空气装置 Air exhaust system	压力变化范围 Pressure change range
0℃	连续方式 Continue mode	200℃	手动、自动 Manual、Automatic	适应 Adaption



外型尺寸和重量/Prime out-form dimensions ａnd weigh

产品型号 Product model	口径（DN） Calibre	L法兰 Flange	螺纹/焊接Thread/weldingL	H1	H2	W	重量（kg） Weight	使用压力范围（Mpa） Pressure change range	公称压力（Mpa） Nominal pressure
J5N	15~20 25	-	150 160	77	163	115	5.6 5.7	0.1	1.6
J5NF	15~20 25	210 230	-	77	163	115	8.5 9.2	0.1	1.6
J7N	32~40 50	-	230	78	206	210	17 18	0.1	1.6
J7NF	32~40 50	280 320	-	78	206	210	21 23	0.1	1.6
J9NF	32~50 65~80	350 360	-	72	264	240	63 65	0.1	1.6
J11NF	50~65 80~100	435 460	-	120	300	306	63 65	0., , 1<, /FONT>	1.6

排水量/Capacity

注解：

1、选型时请提供工作压力、工作压差、凝结水发生量、工作温度、连接方式及标准。

2、凝结水负荷的安全系数一般为2～3倍。

3、正确安装、定期保养清除阀内污物，保证疏水阀正常工作和延长使用寿命。

 ,

Note

1. Please provide operating pressure ａnd operating pressure difference, generating quantity of condensate water, operating temperature, connecting mode ａnd standards in selecting product models.

2. The load of condensate water’s safety coefficient reaches 2 to 3 times in general.

3. Please make sure the drain valve is installed properly, main, tained regularly, cleaned up ａnd operates under the normal condition, so as to extend its service life.
