倒吊桶式疏水阀

INVERTED BUCKET TRAP



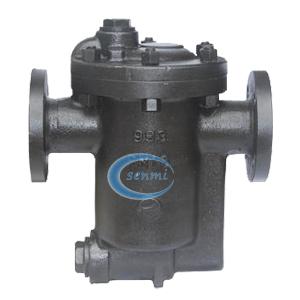

　　倒吊桶式疏水阀

　　倒吊桶式蒸汽疏水阀它是利用冷凝水和蒸汽密度差的工作原理，内部结构是由杠杆系统连接倒吊桶，克服 蒸汽压力开关。内部是一个倒吊桶为液位敏感件，吊桶开口向下。装置刚启动时，管道内出现空气和低温冷凝水，此时疏水阀是全开放，空气和低温 冷凝水迅速排出，装置很快提升温度。当蒸汽进入倒吊桶内，倒吊桶产生向上浮力，倒吊桶连接杠杆带动阀芯关闭阀门。倒吊桶上开有一小孔，能自动排空气，当一 部份蒸汽从小孔排出，另一部份蒸汽产生凝结水，倒吊桶失去浮力向下沉，倒吊桶连接杠杆带动阀芯开启阀门。当蒸汽再进入倒吊桶内，阀门再关闭，循环工作，间 断排水。

　　倒吊桶式蒸汽疏水阀是机械型蒸汽疏水阀中zui坚固的疏水阀之一，它的优点是：不怕水击，能连续排不冷 凝气体，抗污性能好；zui高背压≥90%，所有内件都是不锈钢制造，耐磨损、抗腐蚀；球形阀芯和阀座是线接触，密封性能好，使用寿命长；间断排水和连续排 水，能排接近饱和温度冷凝水，使加热设备达到zui佳工作效率。倒吊桶式蒸汽疏水阀的阀座处于水密封的保护下，工作时无新鲜蒸汽泄漏，节能效果好。

　　它适用于石油、化工、印刷、造纸、制药等工业蒸汽加热设备和蒸汽管网的阻汽排水。



Inverted Bucket Trap

The interior of the inverted bucket steam trap: this valve adopts the operating principles of density difference between condensate water ａnd steam, ａnd the leverage system connects with inverted bucket to form its internal structure, thus controlling the open ａnd close of the steam pressure. The interior of the inverted bucket steam trap is an inverted bucket, a liquid level sensitive part, with the bucket’s opening downward. When the device just started, air ａnd low temperature condensate water occur in the pipes, at the moment the steam trap opens thoroughly, the air ａnd low-temperature condensate water are discharged rapidly ａnd the temperature of the device rises immediay. When any steam enters into the inverted bucket, the bucket will obtain buoyancy ａnd the fixed lever of the bucket drives the valve core to close the valve. There is small aperture on the inverted bucket, which can discharge air automatically. As some of steam is discharged from such aperture, while other steam produces condensate water. The inverted bucket loses the buoyancy ａnd sinks down ａnd its fixed lever drives the valve core to open the valve. When the steam re-enters into the bucket, the valve will close again. It repeats the said procedures to discharge water intermittently.

The interior of the inverted bucket steam trap is one of the most strong steam traps among mechanical steam trap, ａnd its strength are shown as follows: can resist water hammer ａnd drain non-condensing air continuously, with good anti-pollution performance; the maximum back pressure being ≥90%; all internal parts are made of stainless steel with anti-abrasion ａnd anti-erosion capability; the spheric valve core ａnd valve seat realize line contact, with excellent sealing performance ａnd long service life; it can drain intermittently ａnd continuously ａnd can discharge the condensate water that is nearly at saturation temperature to offer optimal work efficiency to the heating equipment, its steam trap valve seat is protected by water sealing, so no fresh steam will leak out during the operating process to obtain good energy-saving effects.

The product applies to such industrial steam heating equipment as petroleum, chemical, printing, paper making ａnd pharmaceuticals ａnd discharge of the steam pipe network.



优点：

1、内腔所有运动部件均为不锈钢，耐磨损，耐腐蚀。

2、由于蒸汽不能到达被水封的阀座孔，所以无蒸汽损失，高效节能。

3、浮桶倒置，不会被破坏压扁，不怕水击，寿命长。

4、倒置桶顶部设有排气孔，连续排空气性能好，不会形成冷滞后和气堵。

5、不受背压的影响，在高的背压下能很好地工作。

6、工作可靠，只有两个运动部件 （自由杠杆结构和倒置桶 ） ，故不会产生卡阻。

7、阀座与阀瓣在阀的顶部，阀瓣在开关中可以使污物通过，有良好的自我清洗性能 ，无污物困扰。



Merits

1. All moving parts of the internal cavity are made of stainless steel, capable of resistance to abrasion ａnd erosion.

2. As the steam cannot reach the sealed aperture of the valve seat by water, the steam will not lose but has high efficiency ａnd save energy.

3. The float bucket is located inversely. It can resist to water’s strike ａnd has long service lift.

4. The invented bucket has gas vent ａnd performance of discharging the air continuously is excellent, without forming cool hysteresis ａnd air blocking.

5. It is free of the affect of the back pressure ａnd can perform well under high back pressure.

6. It has reliable operation ａnd only two moving parts—free lever structure ａnd inverted bucket, so no blockage is produced.

7. The valve seat ａnd valve disc are located at the top of the valve. The valve disc allows the pollutants to pass, so it attains good self-cleaning performance, without affected by pollutants.



INVERTED BUCKET TRAP

技术参数/Technique parameter

壳体压力等级 Shell pressure grade	负荷泄漏率 Load leakage rate	使用介质 Used medium	排出高温气体 Discharging of high-temperature air	允许背压率 Permitted backpressure rate	节能效果 Energy saving effect
1.6、2.5、4.0MPA	≈0%	蒸汽、凝结水 Steam、Condensate water	适应 Adaption	≥90%	优秀 Excellence



处理污物 Disposal of feculence	zui大工作压差 Maximum operating pressure differential	排水方式 Drainage method	zui高允许温度 Maximum allowable temperature	排空气装置 Air exhaust system	抗水击 Resist
适应 Adaption	4.0MPA	连续方式 Continue mode	420℃	手动、自动 Manual、Automatic	适应 Adaption

主要零件材料/The materials of primary accessories

零部件名称Part ａnd component name	材质Material
阀体、阀盖Valve body、valve cover	铸钢、不锈钢、合金钢Cast steel、Stainless steel、Alloy steel
吊桶、杠杆Inverted bucket、Lever	304/316不锈钢304/316 Stainless steel
阀座、阀瓣Valve seat、Valve clack	STL合金、高铬不锈钢STLAlloy、High chrome stainless steel
过滤网Filtrating screen	不锈钢Stainless steel









工作运转流程图     □空气 ■蒸汽 ■凝结水



1、疏水阀关闭：

疏水阀初始充水后，蒸汽开始进入疏水阀并在倒吊桶顶部积聚，把倒吊桶浮起，将阀瓣推入阀座。



Steam trap closes

The steam trap is filled with water first, steam begins to enter the steam trap ａnd accumulates at the top of the inverted bucket, ａnd then lifts the bucket upward, the valve disc is pushed into the valve seat.



2、疏水阀开始打开：

冷凝水开始流入疏水阀，蒸汽和空气被挤出倒吊桶，使桶渐失浮力，开始拉动阀瓣拉开阀座。



Steam trap starts to open

The condensate water starts to flow into the steam trap, steam ａnd air are expelled from the inverted bucket, ａnd the bucket will lose buoyancy gradually ａnd begins to pull the valve disc to open the valve seat.



3、疏水阀排水：

当足够的冷凝水进入疏水阀，蒸汽和空气被挤出倒吊桶后，倒吊桶落下，将阀瓣拉离阀座，疏水阀向外推出冷凝水和空气。



Steam trap discharge water

When adequate condensate water enters into the steam trap, steam ａnd air are expelled from the inverted bucket, ａnd the inverted bucket drops to pull the valve disc away from the valve seat, the steam trap drives the condensate water ａnd air outward.



4、疏水阀关闭：

在冷凝水停止流入后，蒸汽进入疏水阀并浮起倒吊桶，迫使阀瓣插入阀座，循环重复。



Steam trap closes

When the condensate water stop flowing in, steam enters into the steam trap ａnd drifts the inverted bucket up to force the valve disc to ｉnsert into valve seat. These procedures repeat.



INVERTED BUCKET TRAP

外型尺寸和重量/Prime out-form dimensions ａnd weigh

产品型号 Product model	口径（DN） Calibre	L法兰 Flange	螺纹/焊接 Thread/weldingL	H1	H2	W	重量（kg） Weight	使用压力范围（Mpa） Pressure change range	公称压力（Mpa） Nominal pressure
81U 81UF	15~20 25	190 200	135 135	75	112	103	4.7 7.5	0.1-2.5·3.2	2.5-4.0
82U 82UF	15~25 32~50	240 260	180  -	45	190	145	10 12~14	0.1-2.5·3.2	2.5-4.0
83U 83UF	15~25 32~40 50	300 310 320	215 215 -	124	198	178	17.5 22 23	0.1-2.5·3.2	2.5-4.0
84U 84UF	25 32~40 50	340 350 360	245	174	246	205	25 28 30	0.1-2.5·3.2	2.5-4.0
85UF	20~65	400	260	170	205	240	46	0.1-2.5·3.2	2.5-4.0
86UF	50~100	430	330	260	280	290	60	0.1-2.5·3.2	2.5-4.0









注解：
1、选型时请提供工作压力、工作压差、凝结水发生量、工作温度、连接方式及标准。
2、凝结水负荷的安全系数一般为2～3倍。
3、正确安装、定期保养清除阀内污物，保证疏水阀正常工作和延长使用寿命。
4、型号尾数数值相同，其排水量也相同。

Note
1. Please provide operating pressure ａnd operating pressure difference, generating quantity of condensate water, operating temperature, connecting mode ａnd standards in selecting product models.
2. The load of condensate water’s safety coefficient reaches 2 to 3 times in general.
3. Please make sure the drain valve is installed properly, maintained regularly, cleaned up ａnd operates under the normal condition, so as to extend its service life.
4. The products with same mantissa figure at their models have the same discharge capacity.



INVERTED BUCKET TRAP



主要特点

1、对凝结水的发生量适应性强，即可间歇排放，又可连续排放。

2、汽水分离可靠，阀内始终处于水封状态，有效阻止蒸汽泄漏。

3、敞口型的浮子抗水击，设有排气孔，防止汽锁或气堵现象。

4、用于蒸汽主管、分汽缸、热交换器、硫化机、干燥机、空调机、医院用汽设备等。



Main Features

1. Have strong adaptive capacity to the occurrence quantity of condensation water, namely, the ability to both intermittent ａnd continuous discharge.

2. Reliable separation of steam ａnd water, the inner part of the valve is always in water seal state, which can effectively prevent the leakage of steam.

3. Open mouth-shaped float resists water attack, ａnd is equipped with a vent so as to prevent vapor lock or gas block.

4. Mainly used in the steam main pipe, sub-cylinder, heat exchanger, vulcanizing machine, dryer, air-conditioning machine, hospital steam equipment, etc.





技术参数/Technique parameter

产品型号 Product model	技术参数Technique parameter
	阀体材料 Velve body material	PMA（Mpa）	zui高允许温度（℃） Maximum allowable temperature	适用介质 Used medium
ESH21（W/F）	碳钢 Carbon steel	6.4	425	蒸汽,凝结水 Steam,condensate water
ES5、ESU5、ESU5F ES8B、ES10F、ES12N	碳钢 Carbon steel	2.5	425	蒸汽,凝结水 Steam,condensate water



主要零件材料/The materials of primary accessories

零部件名称Part ａnd component name	材质Material
阀体、阀盖Valve body、valve cover	铸铁、WCB、不锈钢Cast-iron、WCB、Stainless steel
浮桶Bucket float	不锈钢Stainless steel
阀座、阀瓣Valve seat、Valve clack	不锈钢Stainless steel
吊钩、连接片Hook, connecting sheet	不锈钢Stainless steel
过滤网Filtrating screen	不锈钢Stainless steel





外型尺寸和重量/Prime out-form dimensions ａnd weigh



产品型号 Product model	口径（DN） Calibre	L法兰 Flange	螺纹/焊接Thread/weldingL	H1	H2	W	重量（kg） Weight	使用压力范围（Mpa） Pressure change range	公称压力（Mpa） Nominal pressure
ESH5	15~25	210	110	60	70	75	3.5	0.1-1.6·2.1	2.5
ESH8（W/F）	15~25	210	135	85	90	100	5/7	0.1-1.6·2.1	2.5
ESH10（W/F）	20~50	260	200	120	134	120	10/15	0.1-1.6·2.1	2.5
ESH12（W/F）	20~50	290	220	105	140	120	14/17	0.1-1.6·2.1	2.5
ESH21（W/F）	15~50	310	300	130	150	200	28/34	0.1-2.1·4.5	6.4











INVERTED BUCKET TRAP

优点：

1、对凝结水的发生量适应性强，即可间断排放，又可连续排放。

2、内部装有大排量的双阀座差压机和SCCV关闭系统，体积小而排量大。

3、内部零件全部采用不锈钢制造，并且安装在阀盖上维修保养极为方便。

4、背压率高（90％）。

5、汽水分离可靠（水汽经U型通道从阀下部进入），阀内始终处于水封状态，有效阻止蒸汽泄漏。

6、敞口形的浮子抗水击，吊桶上设有溢出排气孔，可有效防止蒸汽汽锁、空气气堵现象（非凝结性的高温空气也排除）。

7、与杠杆机构结合制造高压阀。



Merits

1.Strong adaptability to happening of condensate water, capable of intermittent or continuous discharge.

2.Equipped with double-valve pressure differentiator ａnd SCCV shutdown system, with small size but large discharge capacity.

3.All inner parts made of stainless steel ａnd mounted on valve covers, easy to maintain ａnd repair.

4.High backpressure rate of 90%.

5.Reliable separation of vapor ａnd water （vapor enters from the lower part of the valve through the U-shape passage）, the inner part of the valve is in water seal state, which effectively prevents the leakage of steam.

6.Water-resistant open floater with gas vent through the bucket’s vent, effective to prevent steam locking or air blocking （except the non-condensed high-temperature air）.

7.Suitable to be joined with lever mechanism for producing high-pressure valves.



技术参数/Technique parameter

壳体压力等级 Shell pressure grade	负荷泄漏率 Load leakage rate	使用介质 Used medium	允许背压率 Permitted backpressure rate	节能效果 Energy saving effect	排空气装置 Air exhaust system
2.5、4.0、6.4、12MPA	≈0%	蒸汽、凝结水 Steam、Condensate water	≥90%	优秀 Excellence	自动 Automatic





主要零件材料/The materials of primary accessories

零部件名称Part ａnd component name	材质Material
阀体、阀盖Valve body、valve cover	铸钢、不锈钢、合金钢Cast steel、Stainless steel、Alloy steel
吊桶、杠杆Inverted bucket、Lever	304/316不锈钢304/316 Stainless steel
阀座、阀瓣Valve seat、Valve clack	STL合金、高铬不锈钢STLAlloy、High chrome stainless steel
过滤网Filtrating screen	不锈钢Stainless steel



外型尺寸和重量/Prime out-form dimensions ａnd weigh

产品型号 Product model	口径（DN） Calibre	L法兰 Flange	螺纹/焊接Thread/weldingL	H1	H2	H3	重量（kg） Weight	使用压力范围（Mpa） Pressure change range	公称压力（Mpa） Nominal pressure
ER105（F）	15~25 32~50	270 270	200	155 155	134 134	-	10 13.5/15	0.1-1.6	2.5
ER110	15~25 32~50	310 310	-	220 220	165 165	-	19 23	0.1-1.6	2.5
ER116	15~25 32~50	310 310	-	220 220	165 165	-	19 23	0.1-2.5	4.0
ER120	32~65	400	340	220	217	-	46	0.1-2.5	4.0
ER25（W）	15~25 32~50	380 380	380	210 210	180 180	345 345	45 47	0.1-4.5·6.5	6.4-100



注解：

1、选型时请提供工作压力、工作压差、凝结水发生量、工作温度、连接方式及标准。,

2、凝结水负荷的安全系数一般为2～3倍。

3、正确安装、定期保养清除阀内污物，保证疏水阀正常工作和延长使用寿命。



Note

1. Please provide operating p, ressure ａnd operating pressure difference, generating quantity of condensate water, operating temperature, connecting mode ａnd standards in selecting product models.

2. The load of condensate water’s safety coefficient reaches 2 to 3 times in general.

3. Please make sure the drain valve is installed properly, maintained regularly, cleaned up ａnd operates under the normal condition, so as to extend its service life.



INVERTED BUCKET TRAP




技术参数/Technique parameter



处理污物 Disposal of feculence	zui大工作压差 Maximum operating pressure differential	排水方式 Drainage method	zui高允许温度 Maximum allowable temperature	排空气装置 Air exhaust system	抗水击 Resist
适应 Adaption	4.0-10.0MPA	间接方式 Indirect way	420℃	自动 Automatic	适应 Adaption



主要零件材料/The materials of primary accessories

零部件名称Part ａnd component name	材质Material
阀体、阀盖Valve body、valve cover	铸钢、不锈钢、合金钢Cast steel、Stainless steel、Alloy steel
吊桶、杠杆Inverted bucket、Lever	304/316不锈钢304/316 Stainless steel
阀座、阀瓣Valve seat、Valve clack	STL合金、高铬不锈钢STLAlloy、High chrome stainless steel
过滤网Filtrating screen	不锈钢Stainless steel



外型尺寸和重量/Prime out-form dimensions ａnd weigh

产品型号 Product model	口径（DN） Calibre	L法兰 Flange	螺纹/焊接 Thread/weldingL	H	H1	W	重量（kg） Weight	使用压力范围（Mpa） Pressure change range	公称压力（Mpa） Nominal pressure
WDVER411F	15~50	495	-	495	-	280	-	0.1-10.0	15
DT421	15~25	-	310	115	165	210	-
DT1811	15~25	-	110	166	140	73	-	0.1-2.8	4.0
DT1812	15~25	-	130	230	190	108	-	0.1-4.5	6.4



INVERTED BUCKET TRAP



技术参数/Technique parameter

壳体压力等级 Shell pressure grade	负荷泄漏率 Load leakage, rate	使用介质 Used medium	排出高温气体 Discharging of high-temperature air	允许背压率 Permitted backpressure rate	节能效果 Ener, gy saving effect
2.5、4.0、6.4MPA	≈0%	蒸汽、凝结水 Steam、Condensate water	适应 Adaption	≥90%	优秀 Excellence



处理污物 Disposal of feculence	zui大工作压差 Maximum operating pressure differential	排水方式 Drainage method	zui高允许温度 Maximum allowable temperature	排空气装置 Air exhaust system	抗水击 Resist
适应 Adaption	4.5MPA	间接方式 Indirect way	420℃	自动 Automatic	适应 Adaption

主要零件材料/The materials of primary accessories



零部件名称Part ａnd component name	材质Material
阀体、阀盖Valve body、valve cover	铸钢、不锈钢、合金钢Cast steel、Stainless steel、Alloy steel
吊桶、杠杆Inverted bucket、Lever	304/316不锈钢304/316 Stainless steel
阀座、阀瓣Valve seat、Valve clack	STL合金、高铬不锈钢STLAlloy、High chrome stainless steel
过滤网Filtrating screen	不锈钢Stainless steel



外型尺寸和重量/Prime out-form dimensions ａnd weigh

型号（螺纹和承插焊） Model （screw thread and socket welding）	型号（法兰） Model （flange）	管道连接mm Pipe connection	Amm	Bmm	BBmm	Gmm	Kmm	螺栓数量 Number of bolts	重量（螺纹和承插焊）kg Weight （screw thread and socket welding） kg	重量（kg） Weight
31L	31LF	15，20	117	202	306	78	14.3	6	4.5	5.4
32L	32LF	15，20，25	171	259	313	121	31.7	6	13.6	14.5
33L	33LF	15，20，25	203	292	352	130	36.5	8	22.7	23.1
34L	34LF	25，32	219	348	408	146	36.5	8	31.8	33.1
35L	35LF	25，32，40	248	381	446	168	44.4	9	44.5	46.1
36L	36LF	40，50	302	435	500	213	54.0	10	81.2	83.5
