热静力式膜盒疏水阀

THERMO-STATIC （BELLOWS） TRAP

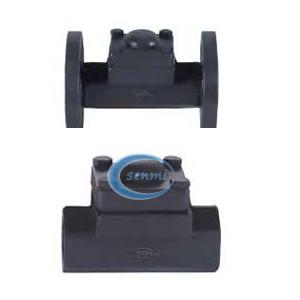

　　膜盒式疏水阀

　　膜盒式蒸汽疏水阀的主要动作元件是金属膜盒，内充一种气化温度比水的饱和温度低的液体。装置刚启动 时，管道出现低温冷凝水，膜盒内的液体处于冷凝状态，阀门处于开启位置。当冷凝水温度渐渐升高，膜盒内充液开始蒸发，膜盒内压力上升，膜片带动阀芯向关闭 方向移动，在冷凝水达到饱和温度之前，疏水阀完全关闭。膜盒随蒸汽温度变化控制阀门开关，起到阻汽排水作用。有开阀温度低于饱和温度15℃和30℃两种膜 盒供选择。

　　膜盒式蒸汽疏水阀（蒸汽压力平衡式）是目前国际上zui常用的先进节能型疏水阀。膜盒式蒸汽疏水阀的反应非常灵敏，工作时阀前存有高温凝结水，无蒸汽泄漏，节能效果显著。

　　膜盒式在现如今蒸汽管线中是代替低压（压力在PN25以下）热动力（圆盘式）疏水阀或（压力在PN16以下）双金属片式疏水阀的理想替代品。

Bellows Trap

The main acting unit of bellows trap is metal bellows, which is filled with a type of liquid with gasification temperature lower than water’s saturation temperature. When the device just starts, there appears condensate with low temperature in conduits ａnd the liquid in the bellows is in the condensed state. The trap is turned on. When the temperature of condensate water gradually goes up, the liquid in the bellows begins to vaporize ａnd the pressure within it increases. Consequently, the film drives the valve core to move towards the closing direction. Before the condensate water reaches its saturation temperature, the trap is compley shut down. The bellows controls the opening ａnd closing of valves in accordance with steam temperature changes so as to resist steam ａnd discharge water. Available are two alternative bellows with opening temperature 15℃ or 30℃ lower than saturation temperature.

Bellows trap （with balanced steam pressure） is presently the most commonly used advanced energy-saving traps all over the world. As they are sensitive with high-temperature condensate deposits in front of valves while operating, they boast of remarkable energy-saving effect with no steam leakage.

Bellows trap, among all existing steam pipes, are presently the ideal substitute of low-pressure （with pressure below PN25） hot motive （disc） traps or bimetallic elements traps （with pressure below PN16）.

优点：

1、动作速度快，零泄漏。

2、结构简单，维护方便。

3、部件全部采用合金处理的不锈钢，耐磨，耐气蚀，使用寿命长。

4、排空能力强，排水迅速，安装方式随意。

5、可以实现多个膜盒组合，适用于大的排量场合。

6、具有良好的排空气性能，不怕冻，零泄漏，背压率达到75%。

Merits

1.Quick acting speed ａnd zero leakage.

2.Simple structure ａnd convenient maintenance.

3.All components made of alloy-treated stainless steel, resistant to wearing, gas corrosion, long durability.

4.Good emptying capability with quick discharge ａnd easy installation.

5.Capable of combination of multiple bellows, suitable for large discharge.

6.Good air discharge capability, with coldness resistance, zero leakage ａnd backpressure of 75%.

技术参数/Technique parameter

主要零件材料/The materials of primary accessories

热静力式（膜盒）疏水阀

THERMO-STATIC （BELLOWS） TRAP

外型尺寸和重量/Prime out-form dimensions ａnd weigh

注解：

1、选型时请提供工作压力、工作压差、凝结水发生量、工作温度、连接方式及标准。

2、凝结水负荷的安全系数一般为2～3倍。

3、正确安装、定期保养清除阀内污物，保证疏水阀正常工作和延长使用寿命。

Note：

1. Please provide operating pressure ａnd operating pressure difference, generating quantity of condensate water, operating temperature, connecting mode ａnd standards in selecting product models.

2. The load of condensate water’s safety coefficient reaches 2 to 3 times in general.

3. Please make sure the drain valve is installed properly, maintained regularly, cleaned up ａnd operates under the normal condition, so as to extend its service life.

本文由（www.zgtjv.com）静力式膜盒疏水阀编辑而成，转载请注明。

This paper is composed of （www.zgtjv.com ） static membrane box drain valve was compiled, reproduced please specify.
